UHF UDM9R Integrated Reader

Brand: VIRTUALSPHERE
Product Code: UDM9R
SKU: UDM9R
Availability: In Stock

₹30,000.00
Ex Tax: ₹30,000.00

Description
Reviews (0)

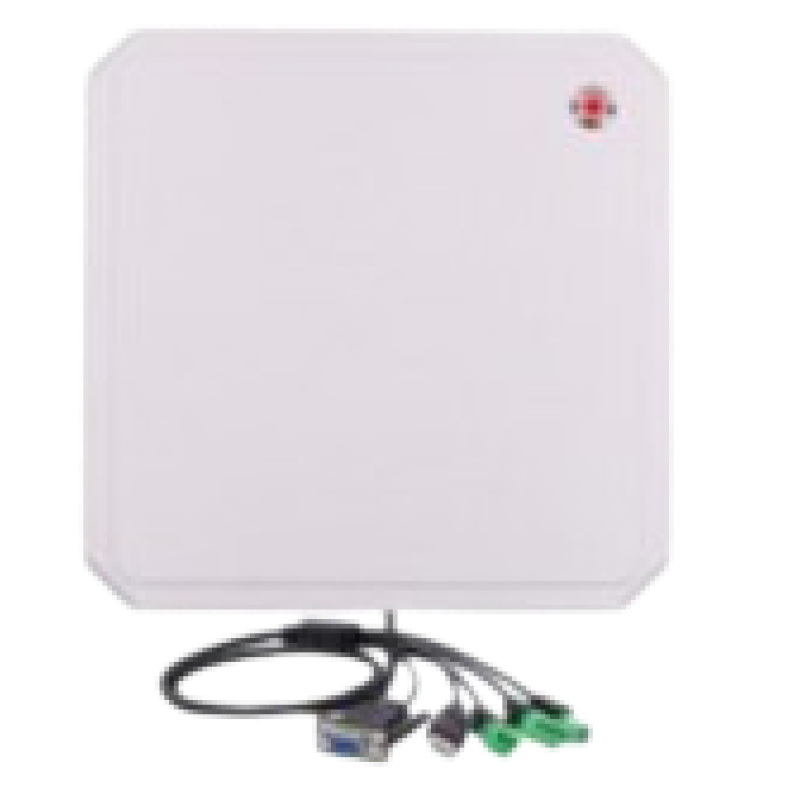

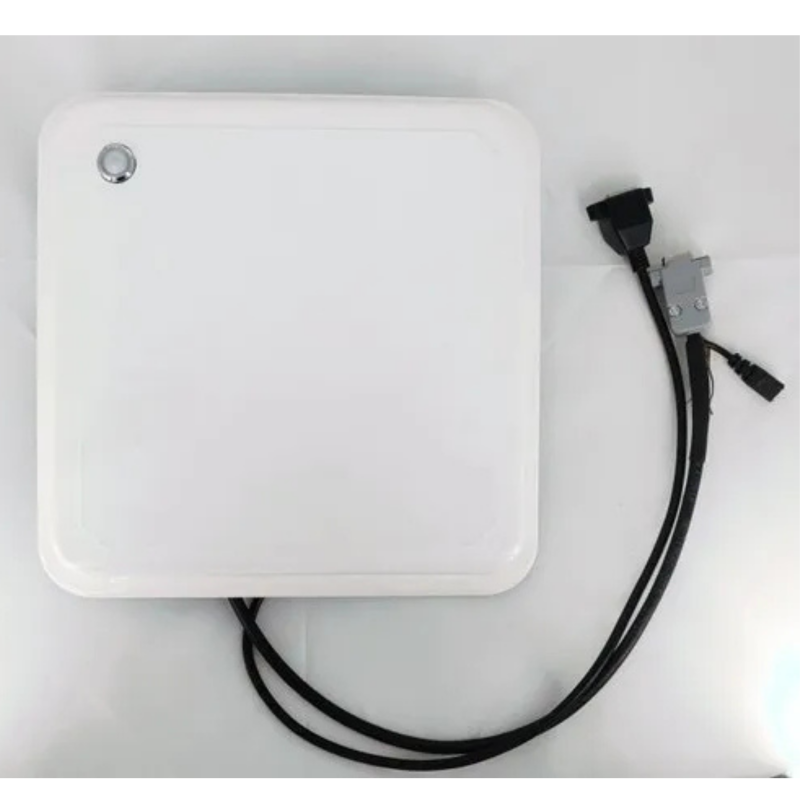

Virtualsphere UDM9R is a high-performance single-channel fixed RFID reader. Employing a self-developed high-performance module based on Impinj E710 chip, working together with integrated high-performance antenna,and supports Impinj Gen2X, UDM9R's UHF performance is outstanding. The reader supports RS-232, RJ45 and GPIO communication interfaces. UDM9R is applicable widely in warehousing, archives management, library management, banking, production line management and
other fields.

Specification

Main Specifications

Model Name	UDM9R
Dimension	270 x 270 x 77mm / 10.63 x 10.63 x 3.03in (9dBi)
Comm Interface	RS - 232, RJ45, GPIO,USB
Color	White
Material	Plastic + Aluminium
Housing Material	ABS
Baud Rate	115200bps
Working Frequency	862 or 870 MHz band (We can do as per your requirements)
Engine	VM-310-1 based on Impinj E310 chip
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Gain	9 dbi
Input Impedance	50Ω
VSWR	≤1.3
Language	C#, Java, C Language (Easy access/ Integrate Through API )

Receive Sensitivity	< -84dBm
Fastest Read Rate	Up to 950 tags/s
Operating Temperature	-40ºC/+60ºC
Communication Method	10/100 Base-T Ethernet (RJ45)
Front to back Ratio	≥17dB
Applications	Library management, banking, production line management, Logistics & Warehouse, Access Control, Warehouse Management, Student Tracking

Software Development Kit

Tags: RFID Integrated Reader, 9dbi reader

UHF UDM9R Integrated Reader

₹30,000.00

Model Name

UDM9R

Dimension

270 x 270 x 77mm / 10.63 x 10.63 x 3.03in (9dBi)

Comm Interface

RS - 232, RJ45, GPIO,USB

Color

White

Material

Plastic + Aluminium

Housing Material

ABS

Baud Rate

115200bps

Working Frequency

862 or 870 MHz band (We can do as per your requirements)

Engine

VM-310-1 based on Impinj E310 chip

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Gain

9 dbi

Input Impedance

50Ω

VSWR

≤1.3

Language

C#, Java, C Language (Easy access/ Integrate Through API )

Receive Sensitivity

< -84dBm

Fastest Read Rate

Up to 950 tags/s

Operating Temperature

-40ºC/+60ºC

Communication Method

10/100 Base-T Ethernet (RJ45)

Front to back Ratio

≥17dB

Applications

Library management, banking, production line management, Logistics & Warehouse, Access Control, Warehouse Management, Student Tracking
