UDM9R-wifi UHF Integrated Reader
UDM9R-wifi UHF Integrated Reader  UDM9R-wifi UHF Integrated Reader

UDM9R-wifi UHF Integrated Reader

  • Brand: VIRTUALSPHERE
  • Product Code: UDM9R-wifi
  • SKU: UDM9R-wifi
  • Availability: In Stock

0 reviews / Write a review

  • ₹33,000.00

  • Ex Tax: ₹33,000.00

Available Options

Qty

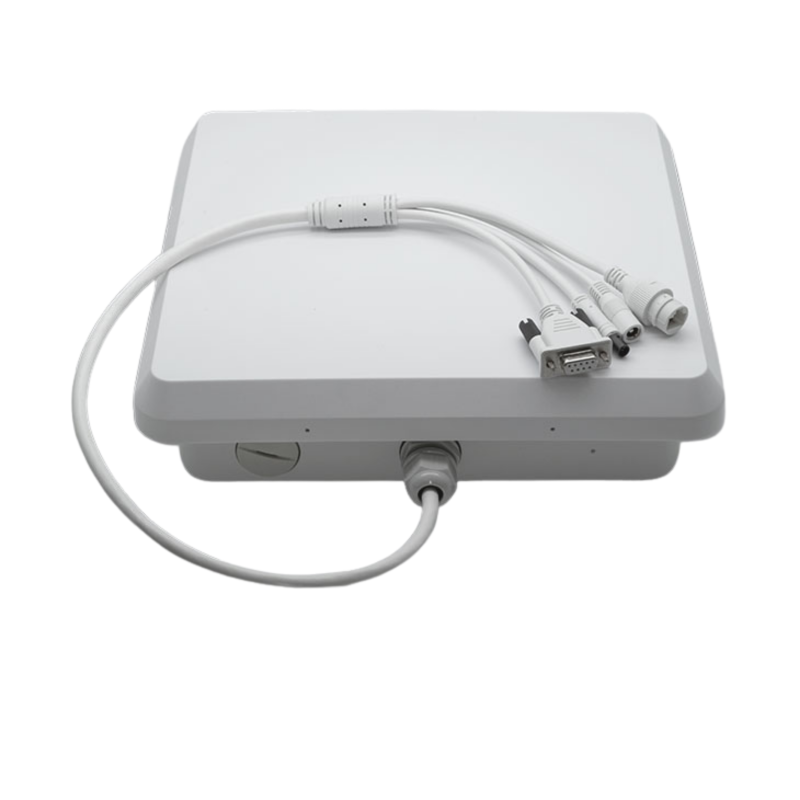

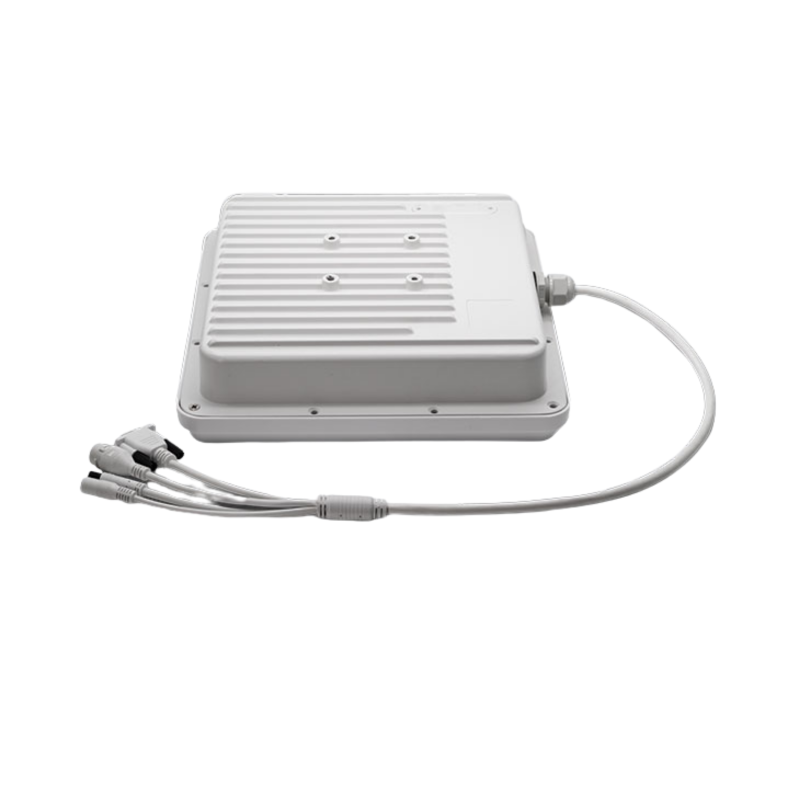

Virtualsphere UDM9R is a high-performance single-channel fixed RFID reader. It supports direct connection to VIM7100, VIM5100, and VIM3100 modules, offering USB, RS232, and TCP/IP communication interfaces. Optional Wi-Fi or Bluetooth communication is available. The Reader operates on a 9–24V supply using a matching 9V/3A or 12V/2A adapter. Employing a self-developed high-performance module based on Impinj E310 chip, working together with integrated high-performance antenna,and supports Impinj Gen2X, UDM9R's UHF performance is outstanding. The reader supports RS-232, RJ45 and GPIO communication interfaces. UDM9R-wifi is applicable widely in warehousing, archives management, library management, banking, production line management and other fields.



Specification

Main Specifications



Model Name
UDM9R-wifi
Dimension
270 x 270 x 77mm / 10.63 x 10.63 x 3.03in (9dBi)

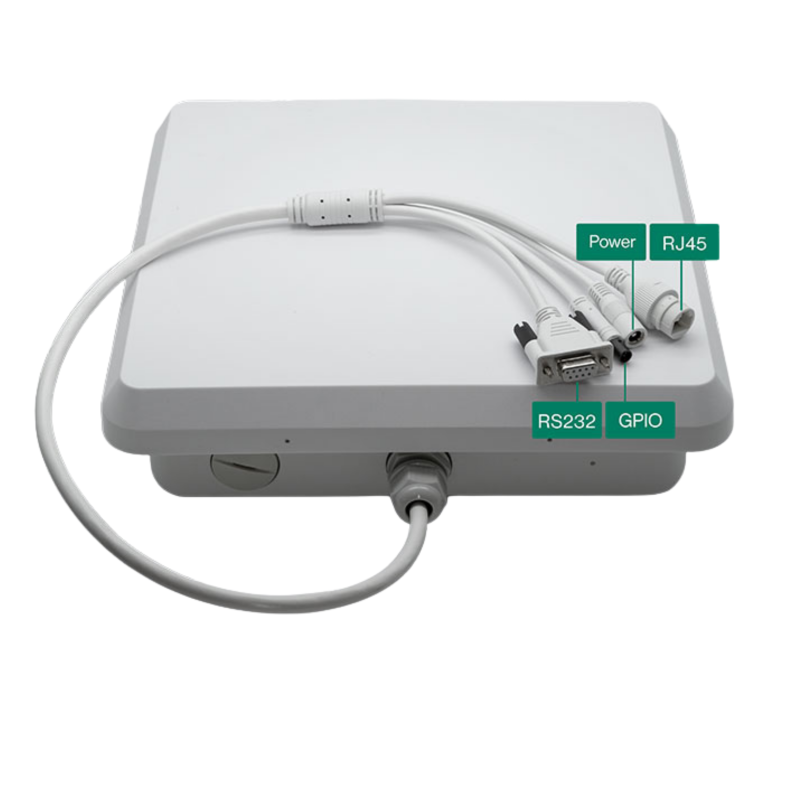

Comm Interface
RS - 232, RJ45, GPIO,USB, (Wifi/Bluetooth optional)
Color
White
Material
Plastic + Aluminium
Housing Material
ABS
Baud Rate
115200bps
Working Frequency
862 or 870 MHz band (We can do as per your requirements)
Engine
VM-310-1 based on Impinj E310 chip
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Gain
9 dbi
Input Impedance
50Ω
VSWR
≤1.3
Language
C#, Java, C Language (Easy access/ Integrate Through API )
Receive Sensitivity
< -84dBm
Fastest Read Rate
Up to 950 tags/s
Operating Temperature
-40ºC/+60ºC
Communication Method
10/100 Base-T Ethernet (RJ45)
Front to back Ratio
≥17dB
Applications
Library management, banking, production line management, Logistics & Warehouse, Access Control, Warehouse Management, Student Tracking





Software Development Kit
