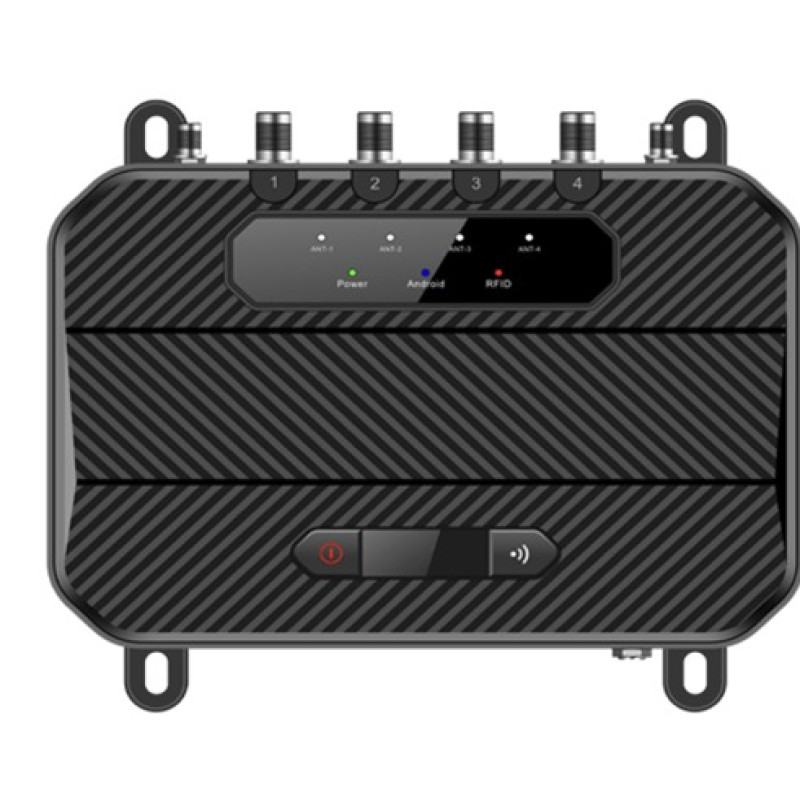

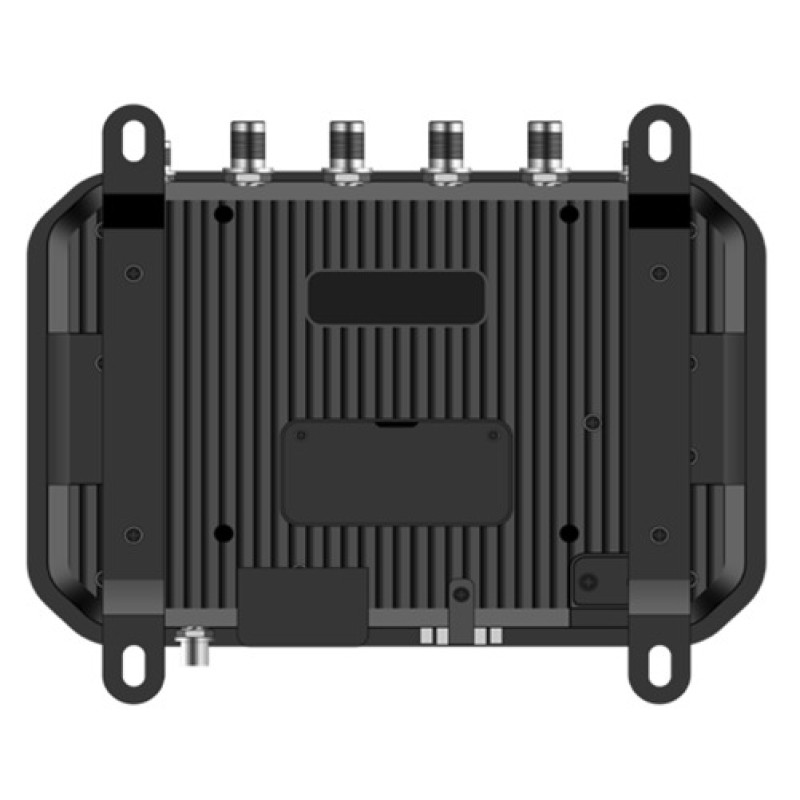

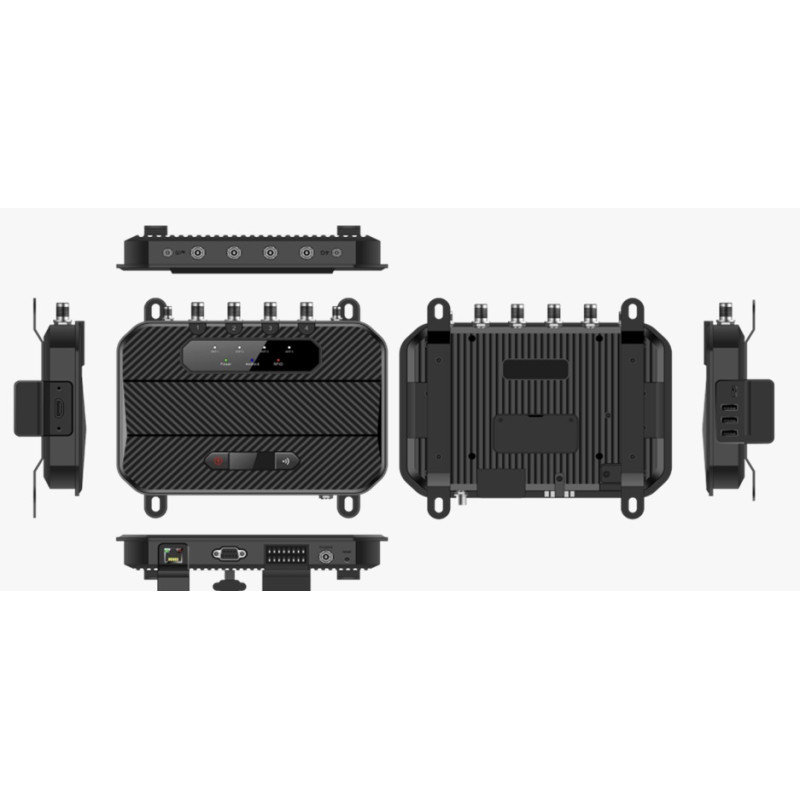

VSL - A4 (RFID Fixed Reader)
VSL - A4 (RFID Fixed Reader)  VSL - A4 (RFID Fixed Reader)

VSL - A4 (RFID Fixed Reader)

  • Brand: VIRTUALSPHERE
  • Product Code: VSL - A4
  • SKU: VSL - A4
  • Availability: In Stock

0 reviews / Write a review

  • ₹45,000.00

  • Ex Tax: ₹45,000.00

Qty

Virtualsphere VSL - A4 is a 4-channel fixed RFID reader, based on Android 13 Integrated with Impinj E710 chip. With the added support of Impinj Gen2X, it delivers superior UHF performance. The reader supports RS232, RJ45 and HDMI, and can be compatible with various types of antennas. With high stability and outstanding performance, VSL - A4 can be ideally applied to warehouse management, archives and library management, bank, clothing and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet and vending machines.



Specification

Main Specifications



Model Name
VSL - A4
Frequency Range
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna
Supporting a variety of antennas, such as 6dBic, 9dBic. 4 channel 50Ω TNC port
CPU
Octa-core 2.0 GHz
RAM+ROM
3GB + 32GB
Ethernet Interface
10/100 Base-T Ethernet (RJ45)
Baud Rate
115200 bps
Bluetooth
Bluetooth 2.1+ EDR/3.0/ 4.1 LE/ 4.2 BLE/5.0 LE
Engine
CM710-4 module based on Impinj E710
Comm Interface
1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB, HOST
Language
Java,  Eclipse/Android Studio
Operating system
Android

































SDK & Download

SDK          User Manual



Tags: RFID Android Four Port Reader
