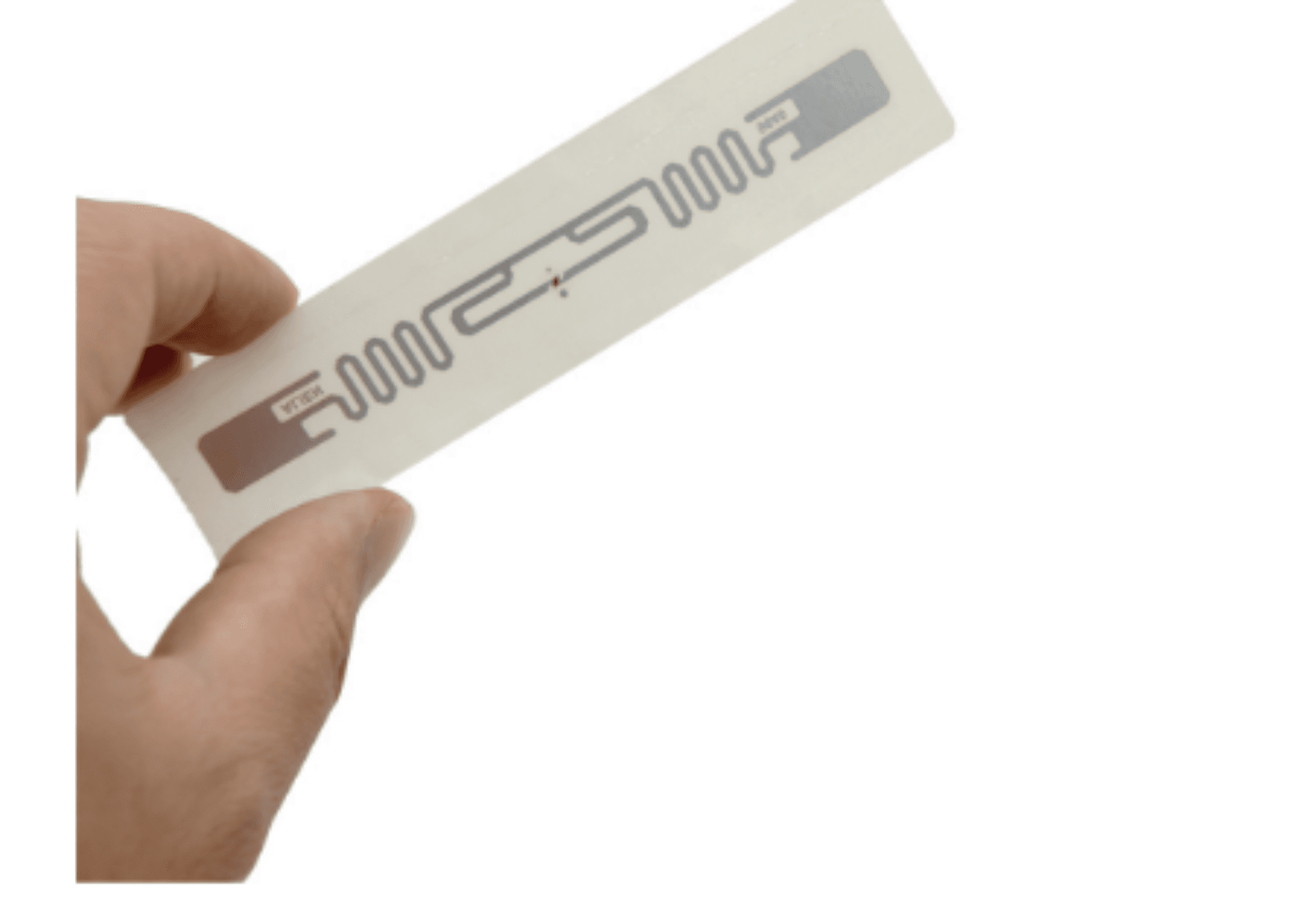

The VST-9640 RFID UHF Inlays from Virtualsphere Technologies feature a slim 98 × 12 mm format built for narrow surfaces where wider tags will not fit. Powered by the Alien Higgs-3 chip, each inlay off…
₹7
Excl. 18% GST, added at checkout · per unit, minimum order 500
In Stock2000 units available
The VST-9640 RFID UHF Inlays from Virtualsphere Technologies feature a slim 98 × 12 mm format built for narrow surfaces where wider tags will not fit. Powered by the Alien Higgs-3 chip, each inlay offers 96-bit EPC, 512-bit user and 64-bit TID memory with password-secured read and write access. Compliant with ISO/IEC 18000-6C EPC Gen 2, it operates across 865–868 MHz and 902–928 MHz, achieving read distances up to 8 m. Available as dry or wet inlays, it suits apparel hang tags, file folders, baggage tags, cartons and pallet labels. Custom EPC encoding and printing are offered for volume orders.
Model: VST-9640 RFID UHF Inlay

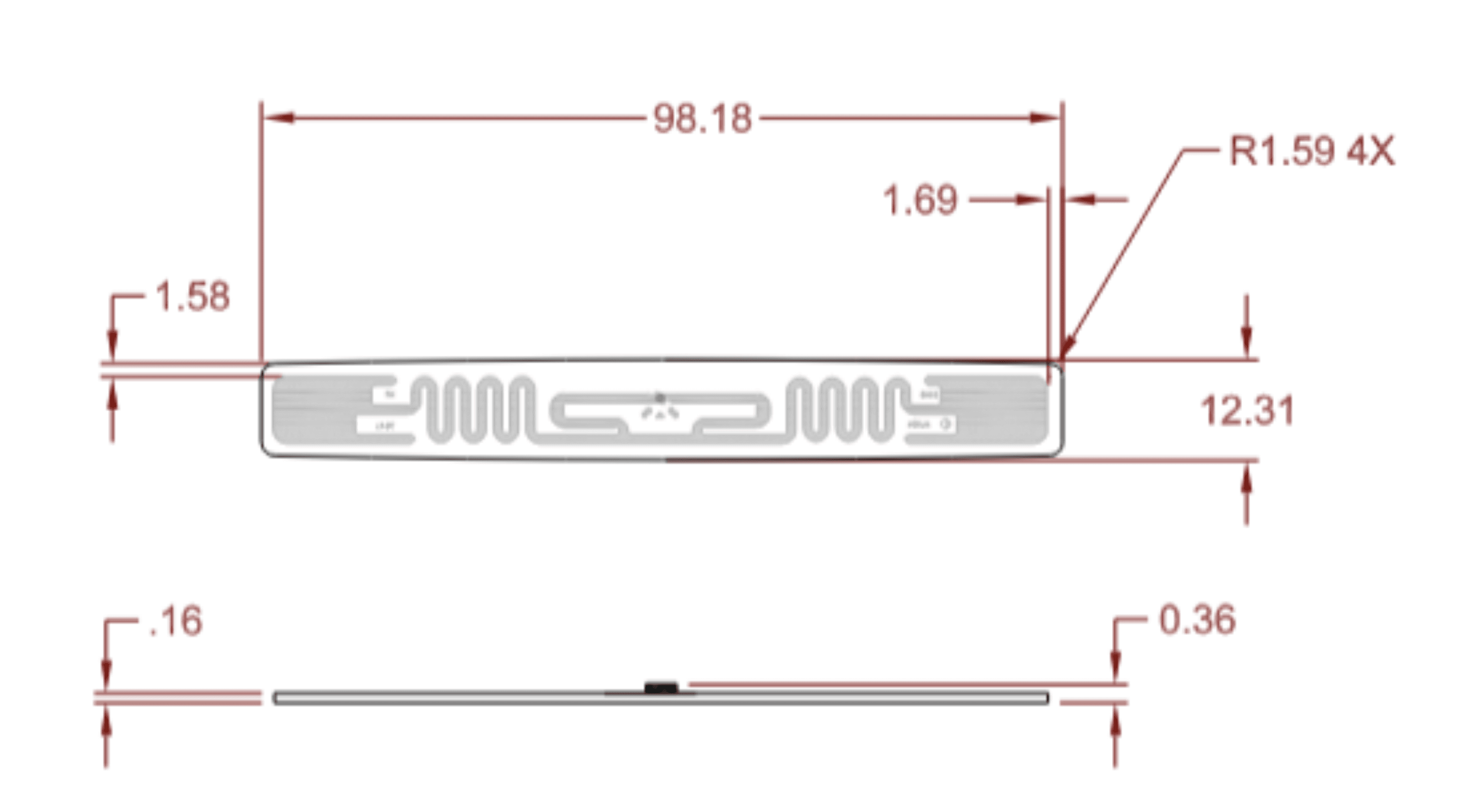

Dimensions: 98 mm × 12 mm
Face material: Paper / TT printable white film overlay
Adhesive: General-purpose permanent
Availability: wet inlay
Chip: Alien Higgs-3
EPC memory: 96 bits
User memory: 512 bits
TID memory: 64 bits
Protocol: ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Frequency: 865–868 MHz (ETSI) / 902–928 MHz (FCC)
Read range (fixed reader): Up to 8 m*
Read range (handheld reader): Up to 6 m*
Write cycles: 100,000
Operating temperature: -25 °C to +50 °C
Chemical resistance: Resistant to solvents and moisture
Shelf life: 2 years
Pre-encoding: Customer-specific EPC encoding
Applications: Retail, supply chain, warehouse, manufacturing, healthcare, logistics
*Read range depends on the reader, the antenna and the surface the tag is applied to.
